Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO:9001
Model Number:
SBW-600KVA
Video

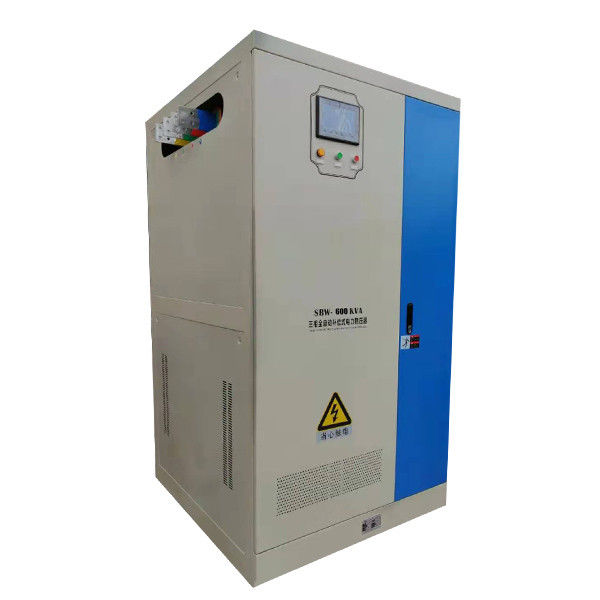

High Power 3 Phase Automatic Voltage Regulator 600KVA For Electrical Equipment
1. Product Parameters
Please get the detailed parameters of this 600KVA high power voltage stabilizer through the following information:
| Item name | Three phase high power compensation electrical voltage stabilizer/regulator |
| Product Model | SBW-600KVA |
| Rated Output Power | 600KVA |
| Input Voltage Range | 304VAC~456VAC 3P or designed according to your requirements |
| Rated Output Voltage | 380VAC 3P or designed according to your needs |
| Rated Input and Output Current | 911A (maximum current) |
| Output Voltage Accuracy | ＋－2% of 380V or rated output voltage |
| Rated Frequency | 50HZ~60HZ |
| Response Time | Less than one second if the input voltage ranges between 380V±10% |
| Insulation Resisitance | ≥5MΩ |
| Insulation Class | Class F or higher |
| Protection Functions | Over-current, over-load, over-voltage, under-voltage, phase failure, lack phase, time delay etc. |
| Working Temperature | -10℃~45℃ |
| Working Altitude | ＜1000 meters |
| Ambient Relative Humidity | 20%~90% |
| Installation and Usage | Install the product in a well-ventilated place or area with ambient environment mentioned above |
| Wiring | 3 phase five wires (ABC N PE) |
For more detailed information, please feel free to contact us through email or online chatting.

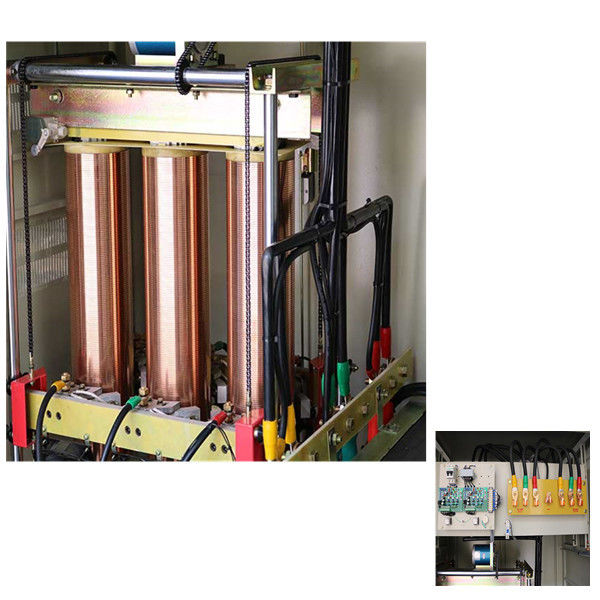

2. Main Parts
| Main components of the 600KVA voltage stabilizer | Functions of it |
| Compensation transformer | Compensating the voltage when it fluctuates |
| Pure copper column | Regulating the voltage with the movement of carbon brush |
| 1017 Carbon brush | Helping regulate the voltage |
| Circuit board | Controlling the whole circuit and giving out signals to servo motor to drive the chain to move |
| Chain drive | Helping the movement of carbon brush, thus helping to regulate voltage automatically |
| Servo motor | Drive the chain, thus realizing voltage regulation |
| AC contactor | Cutting off the power when the stabilizer is over-loaded or over-current |
| Iron enclosure | Protecting all parts of the product from damaging, dust, and water etc. |
| Pointers | Displaying the data at real time to enable you to know thw working condition of the stabilizer |
| Other necessary parts | Playing an important role in making the voltage stabilizer working normally |
3. Product Features
① Large capacity: the rated power of this product is 600KVA, which is suitable for large electrical appliance.
② Strong load-bearing capability: the power factor of this voltage stabilizer is 98%, almost full capacity.
③ High output voltage precision: normally the figure is ±2%, which is very high accuracy for electrical equipment.
④ Changable working models: you can change the working models between power supply and automatic voltage stabilization; between manual operation and automatic regulation.
⑤ Long lifetime: It could workat least ten years if it's used in an appropriate way.
⑥ Super fast response rate: one-second reaction time when the input voltage fluctuates less than 10% of rated output voltage.
4. Relavant Products
Three phase high precision voltage stabilizer/regulator: 3KVA to 100KVA
Three phase non-contact voltage stabilizer/regulator: 10KVA to 1000KVA
Single phase high power voltage stabilizer/regulator: 50KVA to 1000KVA
Single phase high precision voltage stabilizer/regulator: 500VA to 50KVA
Single phase non-contact voltage stabilizer/regulator: 5KVA-100KVA
etc.
If you needs any related products, please send us enquiries. We would respond as soon as possible to help you find an appropriate product.
