SBW-100KVA Voltage Control Stabilizer With Digital Display Three Phase

SBW-100KVA Voltage Control Stabilizer With Digital Display Three Phase

three phase voltage regulator

high power voltage regulator

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power

Certification:

CE, ISO:9001

Model Number:

SBW-100KVA

Contact Us
Request A Quote
Product Details
Product Name:
3 Phase High Power Voltage Regulator
Product Model:
SBW-100KVA
Phase:
Three Phase
Working Frequency:
50Hz-60Hz
Primary Voltage:
380V±20%
Secondary Voltage:
380V±2%
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
According to Quantity
Payment Terms
T/T,
Supply Ability
400 pcs per Month
Product Description



High Power Voltage Regulator SBW-100KVA with Digital Display Three Phase





1. Product Parameters



Product Name: Three Phase High Power Compensated Voltage Regulator



Product Model: SBW-100KVA



Rated Capacity: 100KVA



Brand: Ewen Power



Input voltage: 380VAC±20%



Output voltage: 380VAC±2%



Working frequency: 50Hz~60Hz



Input current: 151A



Output current: 151A



Output precision: 2%



Working efficiency: ≥90%



Response speed: ≤1s



Ambient temperature: -10°C~50°C



Waveform distortion: No waveform distortion



Overload capacity: one minute for double current



Protections: over-current, over-load, over-voltage, short circuit, under-voltage, time delay etc.





2. Cooperation Terms



MOQ 1 Piece
OEM & ODM Available
Certificate CE, ISO:9001
Packing Standard Export Packing of Strong Wooden Case
Payment Term T/T, L/C, etc.
Lead time Depending on the quantity of your order. Normally seven to ten days are enough for normal products.







3. Product Competitveness


① Advanced technology: the 100KVA is developed with advanced technology, which ensures sound and stable performance of the voltage regulator.



② High output voltage accuracy: the output voltage of the voltage regulator is very precise to the rated one (±2%).



③ Large capacity: 100KVA is relatively large capacity.



④ High working effficiency: the working efficiency is up to 90%.



⑤ No waveform distortion: there is no waveform distortion of output voltage.



⑥ Simple operation and maintenance: wire connection is very simple, and maintenance is very easy.



⑦ Sound performance: this voltage regulator could work continuously.



⑧ Full protections

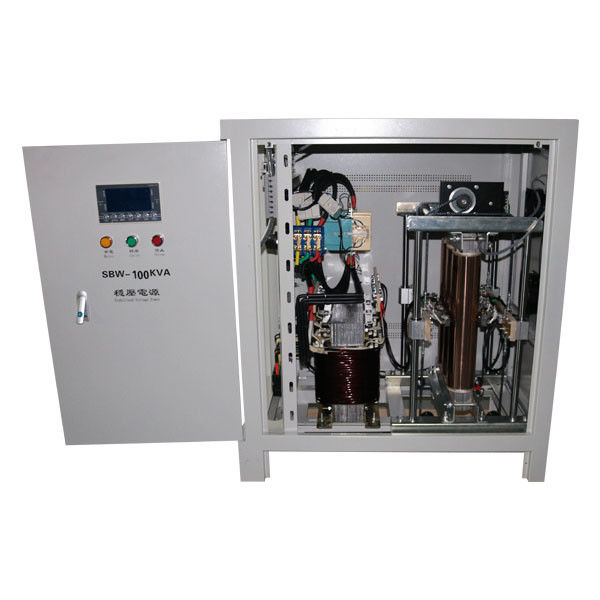

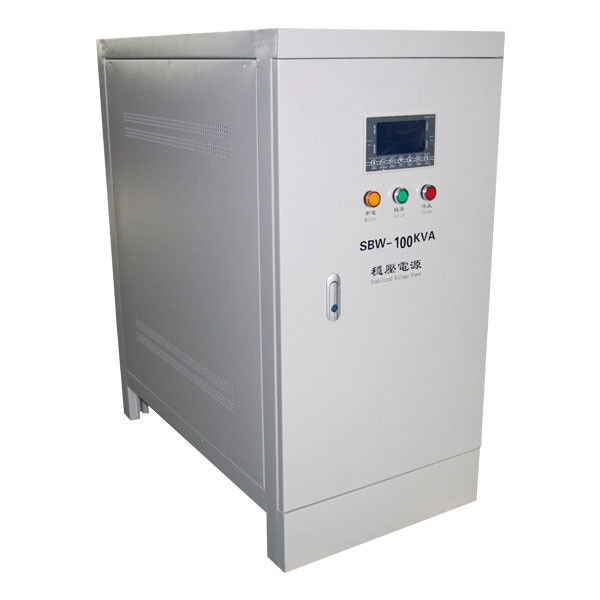

4. Product Display









SBW-100KVA Voltage Control Stabilizer With Digital Display Three Phase 0





5. FAQs



Q: How long is the lead time?
A: It's normally five to ten days. Certainly it depends on the quantity and product requirements. If the quantity is not that large, 10 days or so. If it’s normal products, it takes us less than 10 days to produce it. For large quantity and customized products, it needs 20 to 30 days.



Q: How do you control the product quality?
A: From material coming to product manufacturing, we have professional staff who are responsible for quality inspection. Only the product is up to standard, can we ship it to our customers.



Q: What is the payment terms?
A: FOB/CIF/CFR, normally with 30% deposit for normal products and at least 50% advance payment for tailored products and all balance paid before shipment.



Q: How long is the warranty?
A: We provide one year warranty for our customers. If there is any problem occurred to the product, we could supply the spare parts for you for free. During the warranty period, we would provide technical support with you in case there is any question.
