| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Ewen Power |
| Certification: | CE, ISO:9001 |
| Model Number: | SBW-100KVA |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T, |
| Supply Ability: | 400 pcs per Month |
| Item Name: | High Power Voltage Regulator | Product Model: | SBW-100KVA |
|---|---|---|---|
| Phase: | 3 Phase | Frequency: | 50-60Hz |
| Input Voltage: | 380V±20% | Output Voltage: | 380V |
| Highlight: | three phase voltage regulator,high power voltage regulator |
||
3 Phase High Power Voltage Regulator 100KVA 50Hz 60Hz New Type
1. Product Parameters
| Product Parameters | ||
| Product Name | Three Phase High Power Voltage Regulator | |
| Product Model | SBW-100KVA | |
| Prdocut Capacity | 100KVA | |
| Input voltage | 380VAC±20% | |
| Output voltage | 380VAC±2% | |
| Input current | 151A | |
| Output current | 151A | |
| Output precision | 2% | |
| Working frequency | 50Hz~60Hz | |
| Working efficiency | ≥90% | |
| Response speed | ≤1s | |
| Insulation resistance | ≥2MΩ | |
| Ambient temperature | -15°C~50°C | |
| Waveform distortion | Nil | |
| Overload capacity | Lasting one minute when there is double current | |
| Protections | Over-v, under-v, over-current, over-load, short circuit etc. | |
| Cooperation Terms | ||
| MOQ | 1 Piece | |
| OEM & ODM | Acceptable | |
| Certification | CE, ISO:9001 | |
| Packing | Standard Export Packing of Strong Wooden Case | |
| Payment Term | T/T, L/C, etc. | |
| Lead time | Normally 7-10 working days after deposite or payment received if the quantity is not that large. | |
2. Major Components
| Major components of the product | Description |
| Transformer | Voltage compensation |
| Copper column | Voltage regulation |
| High-quality Carbon brush | Helping regulate the voltage |
| Circuit board | Signal transmission and help regulate voltage |
| Chain drive | Drving the movement of carbon brush |
| Servo motor | Driving the chain and carbon brush to move |
| AC contactor | Over-load or over-current protection |
| Iron enclosure | Protecting the voltage regulator |
3. Product Competitveness
① Advanced technology.
② High output voltage accuracy.
③ Large capacity
④ High working effficiency
⑤ No waveform distortion
⑥ Simple operation and maintenance
⑦ Sound performance
⑧ Full protections
4. Product Display

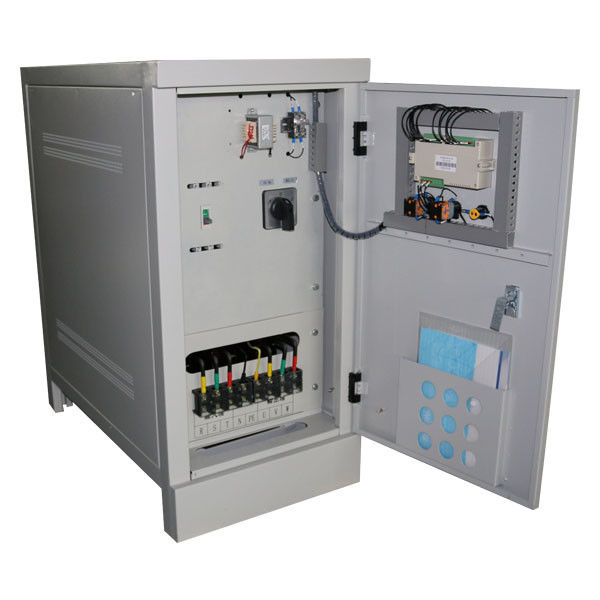

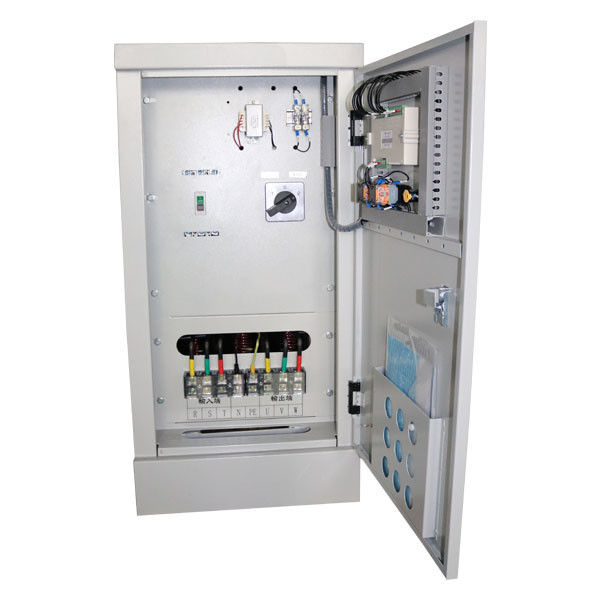

The front of the 100KVA voltage regulator.

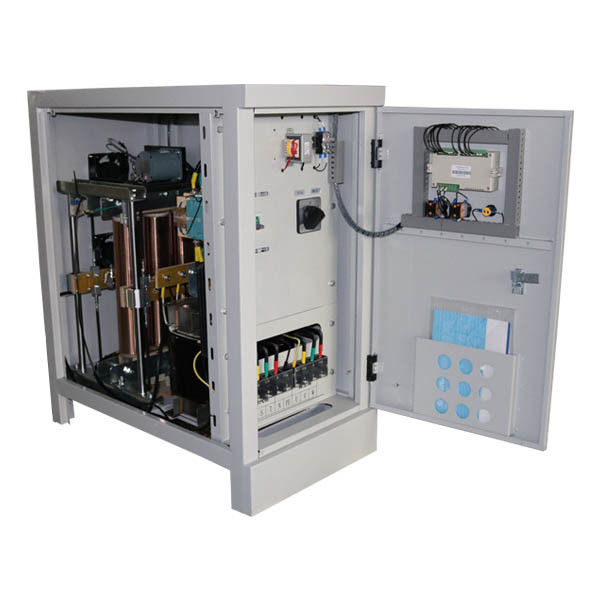

The back of this three phase high power SBW-100KVA voltage regulator.
5. Our Services
Comprehensive services are provided by us to ensure that you would have a good experience on cooperating with Ewen.
1. Sampling services are provided if it’s needed.
2. Technical support could be offered to help you with selecting a right product.
3. OEM/ODM services is acceptable. Your logo could be put on the products if the quantity is relatively large.
4. One-year warranty is provided. We could provide you with spare parts for free if there are problems with them within the warranty period.
5. Installation and testing services could be provided if it’s needed, with service fee paid by our customers due to the long distance.
Except all those services mentioned above, we would try every effort to help you with any problem.
