Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO: 9001
Model Number:
TND(SVC)-2000VA

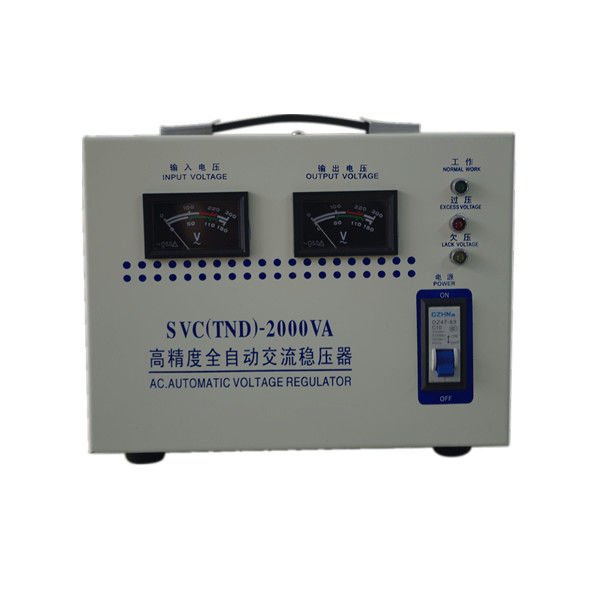

2000VA 2KVA Single Phase Voltage Stabilizer Dual Output Voltage 220V 110V
1. Quick Details
Product name: single phase voltage stabilizer/regulator
Product type: TND(SVC)-2000VA/2KVA
Product brand: Ewen Power or OEM/ODM
Place of origin: Shanghai
Rated Capacity: 2000VA/2KVA
Input voltage range: 150-260V or 80-130V
Output voltage: 220V/110V
Rated frequency: 50Hz to 60Hz
Ambient temperature: -10~45℃
Ambient altitude: ＜1000m
Ambient humidity: 20%-90%
Installation requirement: installing the product in a well-ventilated place
Size: 240*270*200mm
Weight: 10kg for reference
Insulation class: F
Protection class: IP20
Protection functions: over-voltage and under-voltage
Feature: dual output voltage (220V and 110V)
2. Major Competitiveness
| Dual Output Voltage Terminals | 220V and 110V output voltage is designed for different needs. There are two terminals. You could choose one of it according to your needs. |
| Protection Functions | There are under-voltage protection and over-voltage protection functions. |
| Sound Voltage Stabilization Performance | The voltage regulation coil is made of pure copper, which brings about stable performance of voltage stabilization. |
| Independent power switch | This helps users to turn on or turn off the stabilizer before it is connected to the circuit. It'a safer. |
| Input and Output Voltage Display | There are two meters to show the input and output voltage respectively. |
| High electricity inductiveness | Copper coils facilitates strong electricity inductiveness. |
| Prtable design | Although the weight is not that heavy, there is a handle for customers to hold it. |
3. TND Series Products
The product introduced here is a 2000VA/2KVA single phase voltage stabilizer/regulator. The parameters about it have been shown above. If you are interested in single phase voltage stabilizer with larger or smaller capacity, please find the detailed information in the chart below:
| Product Type | Rated Capacity | Input Voltage Range | Output Voltage | Note |
| TND-500VA | 500VA | 150-260/80-130V | 220/110V | Dual output voltage could be achieved |
| TND-1000VA | 1000VA | 150-260/80-130V | 220/110V | Dual output voltage could be achieved |
| TND-2000VA | 2000VA | 150-260/80-130V | 220/110V | Dual output voltage could be achieved |
| TND-3000VA | 3000VA | 150-260/80-130V | 220/110V | Dual output voltage could be achieved |
| TND-5000VA | 5000VA | 150-260/80-130V | 220/110V | Dual output voltage could be achieved |
| TND-10KVA | 10KVA | 150-260/80-130V | 220/110V | Dual output voltage could be achieved |
This chart mainly shows some information on TND-500VA to TND-10KVA. The input voltage range could be that displayed in the figure. Also, it could be customized according to your needs. So does the output voltage. It could be 220V, 110V, or other voltage figure. If you have any special requirements, please let us know.

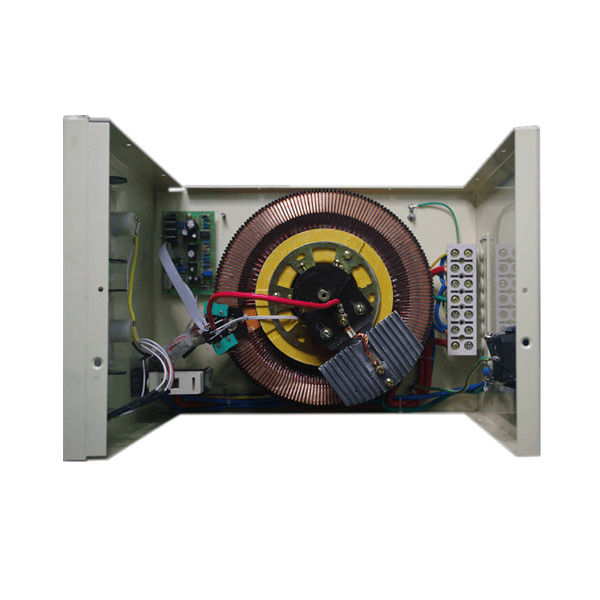

4. Appearance and Inner Structure Diagram
