Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO: 9001
Model Number:
TND(SVC)-20KVA
20 KVA Stabilizer Single Phase Regulator 50Hz 60Hz 220V With ISO / CE Certified
1. Quick Details
Name: single phase voltage stabilizer/regulator
Brand: Ewen (Shanghai) Electrical Equipment Co., Ltd.
Place of origin: Jiading District, Shanghai, PRC
Model: TND-20KVA
Rated power: 20KVA/20000VA
Input voltage: 220V±20% or ±15%
Output voltage: 220V±2% or tailored according to real needs
Input current: 90A for 220V output voltage
Output current: 90A for 220V output voltage
Insulation Class: F
Display: meters
Temperature rise: ＜80℃
Weight: 65kg for reference
Size: 380mm*430mm*780mm
2. Major components
|
Components |
Quantity |
Function or Description |
| Copper coil | One | Its function is to regulate voltage automatically when it is not steady. |
| Aluminum coil | One | It co-works with copper coil to regulate voltage when it fluctuates greatly. |
| Servo motor | One | It drives the carbon brush, one of the important parts, to move. |
| Carbon brush | One | It move along the copper coil, thus regulating the voltage with copper coil by contacting with the coil. |
| Enclosure | One | It protects all the components of the voltage stabilizer. |
| Omni-directional wheels | Four | The wheels are strength-saving by helping you to move the stabilizer more easily. |
| Air switch | One | The air switch is design at the output terminal of the stabilizer. If it's over-current, it would trip. |
3. TND Series Products' Parameters
The chart below shows the basic parameters of TND Series products. If you have special requirements, it could be customized according to your needs.
|
Product Type |
Rated P (VA) |
Size (L*W*H) CM |
Weight (KG) |
Display | Note |
| TND-0.5KVA | 0.5K | 19*16*13.5 | 4 |
Pointer Meters |
Dual output voltage |
| TND-1KVA | 1K | 22*20*16 | 5.5 |
Pointer Meters |
Dual output voltage |
| TND-1.5KVA | 1.5K | 22*20*16 | 5.8 |
Pointer Meters |
Dual output voltage |
| TND-2KVA | 2K | 24*27*20 | 10 |
Pointer Meters |
Dual output voltage |
| TND-3KVA | 3K | 23*29.5*25 | 12 |
Pointer Meters |
Dual output voltage |
| TND-5KVA | 5K | 23*32*27 | 15 |
Pointer Meters/ LCD |
Dual output voltage |
| TND-7KVA | 7K | 25*42*36 | 16.5 |
Pointer Meters/ LCD |
Dual output voltage |
| TND-10KVA | 10K | 28*34*55 | 30 |
Pointer Meters/ LCD |
Dual output voltage/ single output |
| TND-15KVA | 15K | 34*38.5*65.5 | 64 |
Pointer Meters/ LCD |
Single output |
| TND-20KVA | 20K | 38*43*48 | 70 |
Pointer Meters/ LCD |
Single output |
| TND-30KVA | 30K | 38*43*48 | 95 |
Pointer Meters/ LCD |
Single output |
| TND-40KVA | 40K | 43*49*90 | 118 |
Pointer Meters/ LCD |
Single output |
| TND-50KVA | 50K | 43*49*126 | 136 |
Pointer Meters/ LCD |
Single output |
4. Applications
① Household appliances including washer, air conditioner, refrigerator, electrical iron, TV, induction cooker, rice cooker etc.
② School, hotel, hospital, and other places where needs voltage stabilizer or regulator to help stabilize voltage.
③ Electrical appliance like computer, printing machine etc.
④ Other places needing stable single phase voltage.

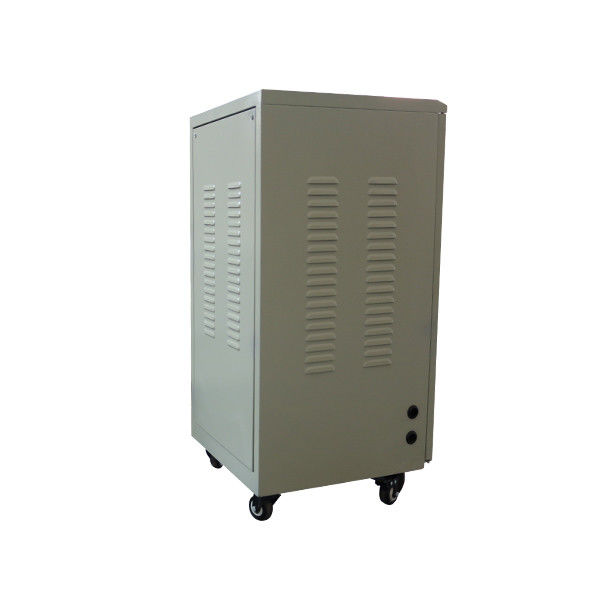

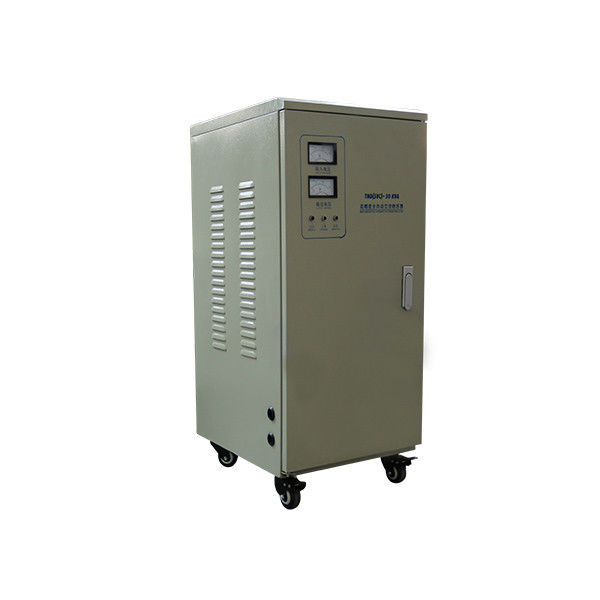

5. More Pictures
