Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO: 9001
Model Number:
TND(SVC)-7KVA
7KVA Single Phase Servo Voltage Stabilizer 220V 110V For Washer / Cooker
1. Quick Details
Product name: single phase voltage stabilizer/Automatic voltage stabilizer
Porduct model: TND-7KVA
Brand: Ewen/OEM/ODM
Place of origin: Shanghai
Rated power: 7KVA/7000VA
Working frequency: 50Hz/60Hz
Input voltage range: 160V~250VAC or 80~130VAC or customized according to your needs
Output voltage: 220V/110V/or customized according to real conditions
2. Technical Parameters
| Insulation | Insulation class | Class F |
| Insulation Resistance | ≥2MΩ | |
| Ambient environment | Temperature | -10~50℃ |
| Humidity | 20%-90% | |
| Altitude | ＜1000m | |
| Ventilation | Sound ventilation conditions | |
| Input | Voltage | 160-250/80-130 or customized |
| Frequency | 50-60Hz | |
| Display | LCD | |
| Output | Voltage | 220V/110V/Customized |
| Frequency | 50-60Hz | |
| Display | LCD | |
| Precision | ±2% | |
| Temperature rise | Less than 80℃ | |
| Dielectrical strength | 2000VAC/MIN | |
| Response time | ＜6s | |
| Weight | 30kg | |
| Protection | Over-voltage, under-voltage, over-current, over-load, and time delay. | |
3. Product Description
The voltage stabilizer introduced here is a automatic voltage regulator. Its rated capacity is 7KVA, with input voltage range 160VAC to 250VAC or 80VAC to 130VAC. The output voltage of it is 220V or 110V. The working frequency is 50Hz to 60Hz.
Certainly, the basic parameters of this voltage stabilizer could be customized according to your needs. The rated capacity, input voltage range, and output voltage could be tailored according to real needs.
The ambient environment for this 7KVA single phase voltage stabilizer to work includes the following aspects: first, ambient temperature. The temperature -10℃ to 45℃ is appropriate for the product to work normally. Second, ambient humidity. The humidity appropriate for the voltage stabilizer is 20% to 90%. Second, ambient altitude. The altitude should be less than 1000 meters. Fourth, good ventilation. The place in which the voltage stabilizer is installed.
4. TND-7KVA's Main Features
| Major Features | Description |
| Fast response time | It takes the voltage stabilzier one second to repond to the voltage fluctuation. |
| High output accuracy | The output accuracy is very high: ±2% |
| Plug and play | There is a plug on this voltage stabilizer. You just plug it and it starts working. |
| No additional waveform distortion | The electrical wave throught the voltage stabilizer keeps its orginal form. |
| Dual output option | 110V and 220V output terminals are provided. You could choose one of it to use. |
| Strong elctricity inductivenss | The coil is made of pure copper, which has a good electricity inductivenss. |
| Stable voltage stabilization performance | This 7KVA single phase voltage stabilizer works soundly and regulates the voltage stably. |
| New design of the enclosure | The enclosure color of this voltage stabilizer is black. There are more ventilation holes on this enclosure, which ensures good ventilation. |

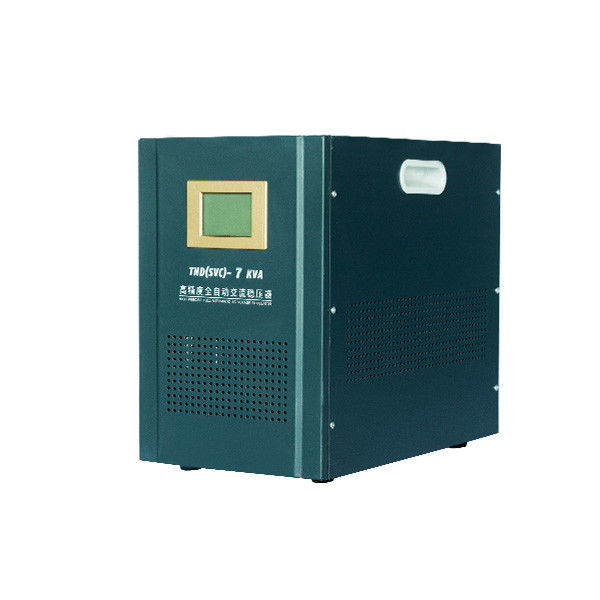

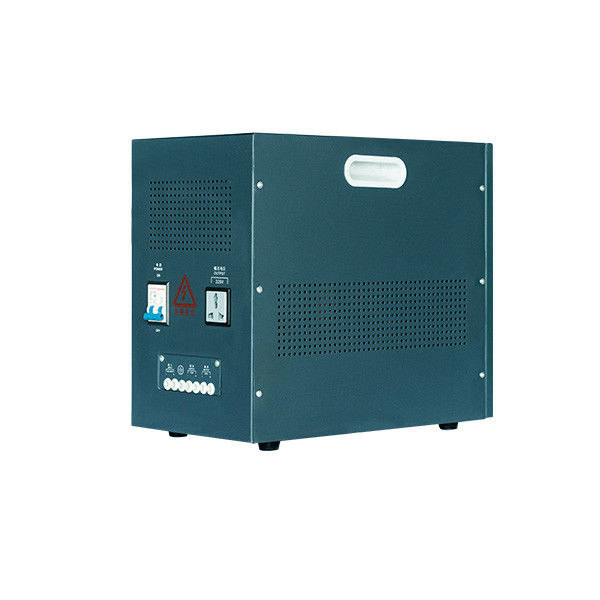

5. Product Pictures
