220V 10KVA Single Phase Voltage Stabilizer 10000VA 50Hz Vertical Installation

220V 10KVA Single Phase Voltage Stabilizer 10000VA 50Hz Vertical Installation

single phase voltage regulator

single phase servo stabilizer

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power


CE, ISO: 9001

Model Number:


Contact Us
Request A Quote
Product Details
Rated Power:
Rated Frequency:
Single Phase
Voltage Stabilizer/AVR
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Wooden Case
Delivery Time
According to Quantity
Payment Terms
Supply Ability
400 pcs per Month
Product Description

220V 10KVA Single Phase Voltage Stabilizer 10000VA 50Hz Vertical Installation


1. Quick Details


Product name: single phase voltage stabilizer, AVR/AC Power Stabilizer

Porduct model: TND-10KVA

Brand: Ewen Power/OEM/ODM

Place of origin: Shanghai, PRC

Rated power: 10KVA/10000VA

Working frequency: 50Hz to 60Hz

Input voltage range: 160V~250VAC, 80~130VAC, or tailored according to actual needs

Output voltage: dual output design (220V and 110V) or tailored according to your needs

Insluation cleass: F

Temperature rise: <80℃

Response time: <1s if the input voltage fluctuates less than 15V

Output precision: ±2%

Power pactor: 98%

Working efficiency: 98%


If you are interested in more detailed information, please contact us for the parameter you need.


2. Product Description

About capacity and voltage:


The product introduced is a 10KVA single phase voltage stabilizer, with rated capacity 7KVA or 7000VA. The input voltage range of it is 160-250V or 80V-130V for 220V output voltage and 110V output voltage respecitvely. Certainly, if you have other requirements with regard to the voltage, please send us the technical parameters. It could be customized according to your parameters.


About Applications:

This single phase voltage stabilizer could be used for home appliance like computer, air conditioner, cooker, washer, refrigerator, and other equipment. Also, it could be applied in schools, hospitals, or other places with fluctuating voltage.


About ambient environment:

As for the ambient environment, it includes the following points. Firstly, ambient humidity. The appropriate humidity is 20% to 90%. Secondly, working temperature. The temperature should be between -10℃ to 45℃ for the voltage stabilizer to work normally. Thirdly, ambient altitude. It should be less than 1000 meters. Fourthly, ventilation. The product should be placed in a well-ventilated place to ensure the heat dissipation.


3. TND-10KVA's Main Features



Main Features (Competitiveness) Description
Meter display The voltage stabilzier is designed with voltmeter and ampere meter to show input and output voltage.
Quick response time One-second response time.
Sound voltage stabilization function It works soundly and stably to regulate the voltage.
High voltage stabilization precision The precision could be ±2%.
Regulation coil co-working with compensation coil As for voltage stabilizer with no more than 10KVA's capacity, it's normal that there are only one regulation coil. For this product, it has a regulation coil and compensation coil, which results in high output accuracy.


4. Product Pictures

220V 10KVA Single Phase Voltage Stabilizer 10000VA 50Hz Vertical Installation 0

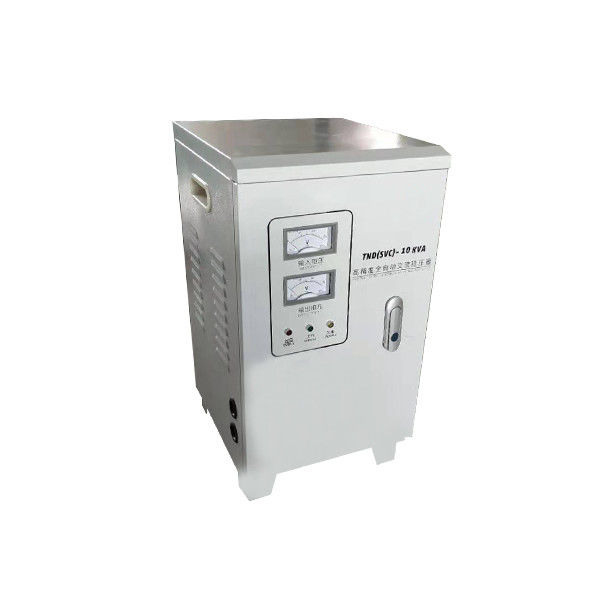

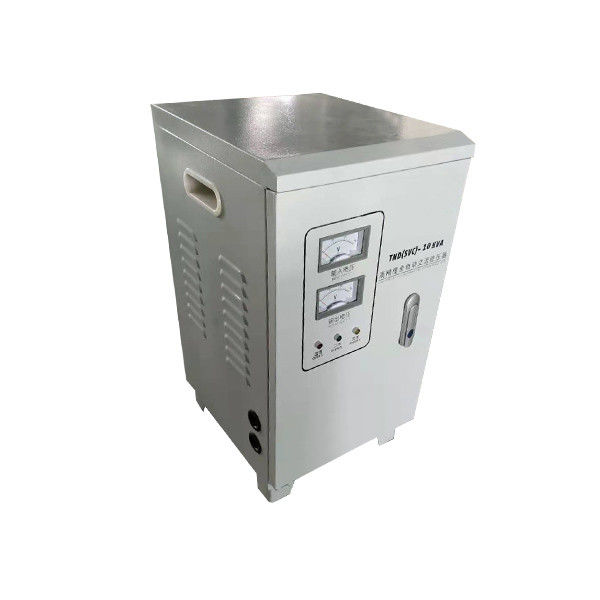

This picture shows you the outer look and inner design of the 10KVA single phase voltage stabilizer. The inner design is very clear and pleasing. The outer look of this single phase voltage stabilizer is also nice.
