300KVA High Power Voltage Stabilizer Three Phase Independent Regulation 380V

  • 300KVA High Power Voltage Stabilizer Three Phase Independent Regulation 380V
  • 300KVA High Power Voltage Stabilizer Three Phase Independent Regulation 380V
Place of Origin Shanghai, China
Brand Name Ewen Power
Certification CE, ISO:9001
Model Number SBW-300KVA
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Wooden Case
Delivery Time According to Quantity
Payment Terms T/T,
Supply Ability 400 pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item High Power Voltage Stabilizer Phase Three
Capacity 300KVA Regulation Independent Regulation Of Each Phase
Output 380VAC Efficiency 98%
Highlight

three phase voltage regulator

,

high power voltage regulator
Leave a Message
Product Description

300KVA High Power Voltage Stabilizer Three Phase Independent Regulation 380V





SBW Series 300KVA Three Phase High Power Voltage Stabilizer

1. Product Profile

SBW series three phase high power voltage stabilizer is designed and developed for stabilizing AC voltage in various industrial areas. When the power voltage supply fluctuates or when the load varies, the 300KVA high power voltage stabilizer could stabilize the output voltage.

2. Product Features

This series product features in large capacity, high working efficiency, no waveform distortion, stable voltage regulation performance, suitability for various loads, strong instaneous load-bearing capability, availability for constant working, manual operation and auto operation alternative, various protection functions, small dimension, light weight, simple operation, reliable performance.

3. Applicable Scenens

This 300KVA three phase high power voltage stabilizer is widely used in industrial and mining companies. It is an ideal voltage supply for precise machine tools, precise device, testing equipment, elevator and production lines. Also, it could be used in railway station, construction sites, schools, hospitals, hotels and other places needing stable voltage.

4. Technic Parameters

Capability

300KVA

Input voltage

Three phase four wires

Output voltage

Three phase five wires

Output precision

±2%

Frequency

50Hz/60Hz

Efficiency

98%

Response time

≤1S

Insulation class

≥ 5MΩ

Over-load bearing capability

Thirty seconds for double rated capacity

Pressure resistance

2000VAC/MIN

Waveform distortion

Nil

Protections

Over-voltage, under-voltage, over-load, over-current etc.

Protections explanation

Over-voltage: when output voltage is 10% higher than the rated one, cut off  power automatically

Under-voltage: when output voltage is 10% lower than the rated one, cut off power automatically

Over-current, if the working current is over the rated one, stop working automatically

Short circuit, when the load equipment develops a short circuit, stop working

Bypass protection: when the stabilizer is of malfunction, you could choose bypass function

Phase lack (optional)

Cut off power automatically

EMI wave flittering device (optional)

Effectively reducing the interference of harmonics

Display

LCD displaying input and output voltage, and current etc.

Operation system

Two systems

Working mode

Constant working available

Output mode

Stabilization and city power modes

Altitude

＜2000m

Relative humidity

20%-90%

Working temperature

-15℃ ~+ 50℃

Noise

＜55dB

Operation standard

JB/T7620－1994, YD/T 1074-2000
Regulation way Independent regulation of each phase



5. Product Display

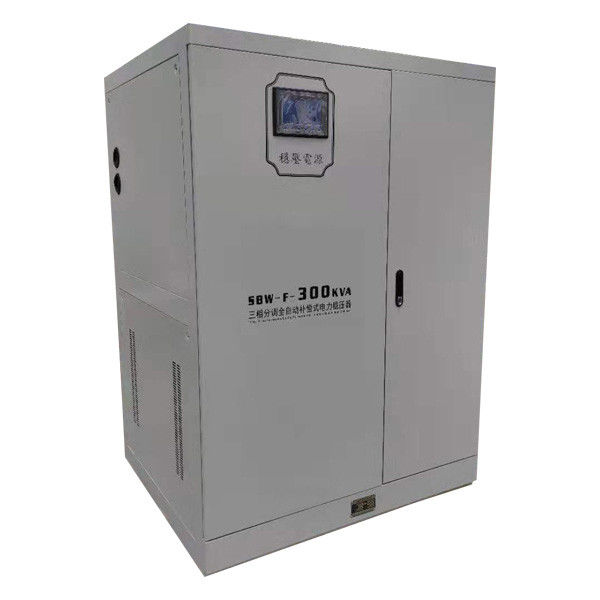

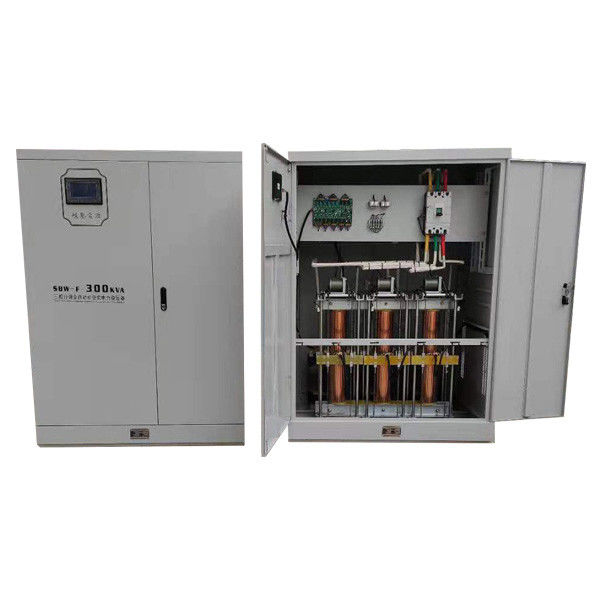

300KVA High Power Voltage Stabilizer Three Phase Independent Regulation 380V 0

300KVA High Power Voltage Stabilizer Three Phase Independent Regulation 380V 1

300KVA High Power Voltage Stabilizer Three Phase Independent Regulation 380V 2
