Industrial Electronic Servo Voltage Stabilizer 50KVA 3 Phase 60Hz 50Hz With LCD Display

Industrial Electronic Servo Voltage Stabilizer 50KVA 3 Phase 60Hz 50Hz With LCD Display

auto voltage regulator

avr voltage regulator

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power/OEM/ODM

Certification:

CE, ISO:9001

Model Number:

SBW-50KVA

Contact Us
Request A Quote
Product Details
Product Name:
Industrial AVR Voltage Stabilizer
Rated Power:
50KVA
Product Model:
SBW-50KVA/KW
Phase:
3 Phase
Display:
LCD Display
Frequency:
60HZ/50HZ
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
Standard Export Wooden Case
Delivery Time
According to Quantity
Payment Terms
T/T,
Supply Ability
400 pcs per Month
Product Description







Industrial AVR Voltage Stabilizer 50KVA 3 Phase 60Hz 50Hz LCD Display





1. Product Specifications



Product name: industrial AVR voltage stabilizer



Product type: SBW-50KVA



Product brand: Ewen power/OEM/ODM



Place of origin: Shanghai, China



Rated power: 50KVA



Rated frequency: 60Hz/50Hz



Input voltage range: customization



Output voltage: customization



Input current: based on the voltage



Output current: based on the voltage



Insulation class: class F



Di-electrical strength: 2000VAC/MIN



Working temperature: -15℃~50℃



Working altitude: <3000m



Relative humidity: 20%-90%



Working noise: less than 80db



Size: 550*750*1250mm or customized according to your needs.



Weight: 240kg for your reference





2. Product Structure



The description in the chart below shows the structures of the voltage stabilizer:



Major parts Introduction
Copper column This is one of the major components of the voltage stabilizer. It functions in voltage regulation when the voltage fluctuates.
Transformer This part is also one of the most important components. It functions in voltage compensation.
Circuit control board As one of the major parts too, this component plays a very important role in transmitting signals in a circuit.
Servo motor It gives drive to the chain to stimulate the carbon brush to move along the copper column so that the voltage could be regulated.
Carbon brush Three carbon brushes move along the copper column up and down when the voltage fluctuates.
LCD display This is an intelligent multifunctional displaying screen showing input voltage, output voltage, and input current etc.





3. Product Advantages



First, the 50KVA voltage stabilizer has an edge on fast response speed. It reacts within one second when the voltage fluctuates.



Second, this product has an advantage of high output voltage precision. ±2% if the figure.



Third, 50KVA, this large capacity is enough for small-capacity electrical equipment.



Fourth, easy maintenance is one of the advantages. It rarely needs to be maintained. You just have to check that if the product works normally or not and dust regularly.





4. Product Pictures



Industrial Electronic Servo Voltage Stabilizer 50KVA 3 Phase 60Hz 50Hz With LCD Display 0

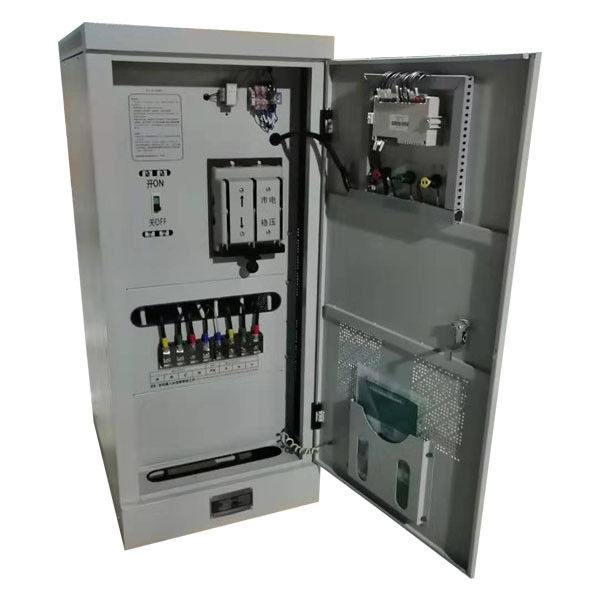

The internal look of this SBW-50KVA AVR voltage stabilizer.



Industrial Electronic Servo Voltage Stabilizer 50KVA 3 Phase 60Hz 50Hz With LCD Display 1

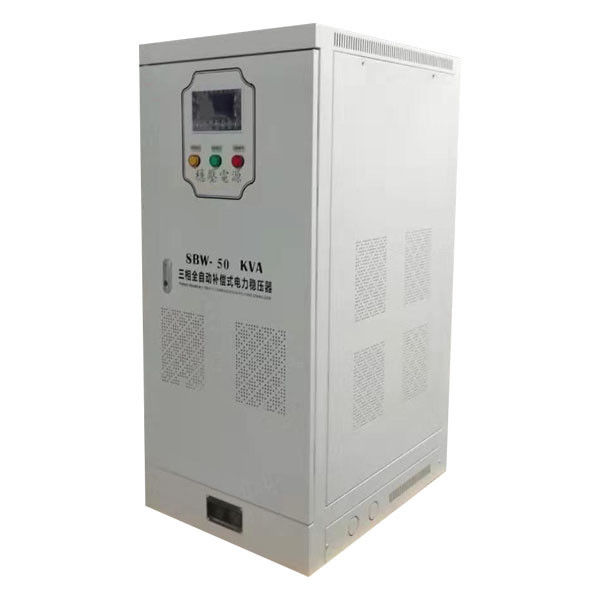

The LCD displaying screen, which could show different data, including input voltage, output voltage, input current etc. Also, you could adjust several data on the screen.



Industrial Electronic Servo Voltage Stabilizer 50KVA 3 Phase 60Hz 50Hz With LCD Display 2



Please have a look at the draught fan and the heat ventilation holes designed with the product to ensure sound heat ventilation.



Industrial Electronic Servo Voltage Stabilizer 50KVA 3 Phase 60Hz 50Hz With LCD Display 3

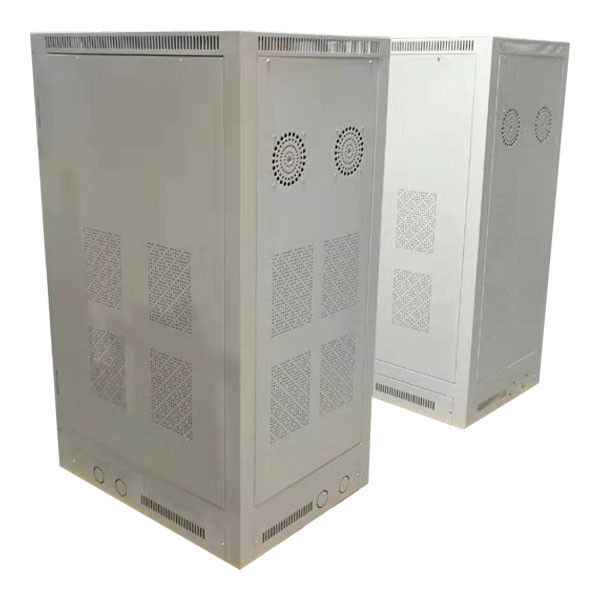

This picture shows the ventilation holes designed on the side doors of this voltage stabilizer.
