Place of Origin:
Shanghai, China
Brand Name:
Ewen Electrical
Certification:
CE
Model Number:
TND(SVC)-15KVA

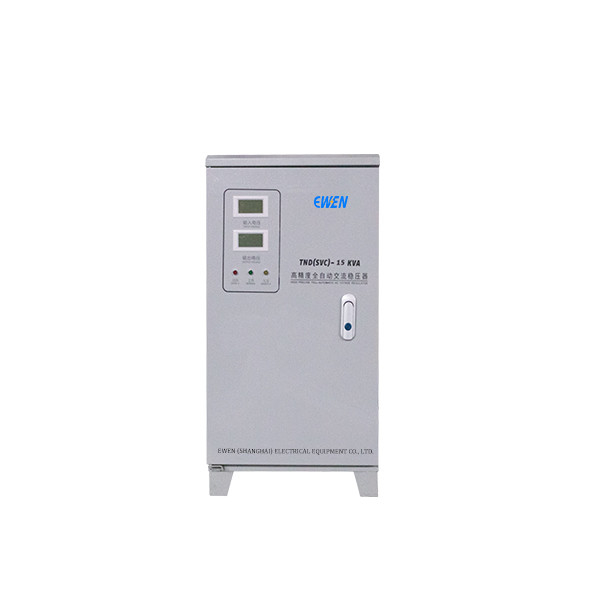

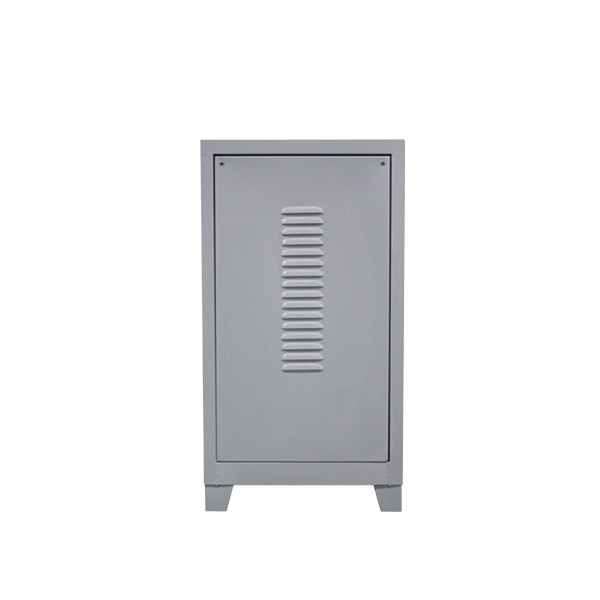

Factory Sale 15KVA Single Phase Voltage Stabilizer 220V 50HZ 60HZ with Digital Meters
1. MAIN TECHNICAL PARAMETERS
|
Product Name |
Single Phase Voltage Stabilizer |
|
Rated Capacity |
15KVA/15000VA (Could be customized) |
|
Product Type |
TND(SVC)-15KVA |
|
Input Voltage Range |
220V±20% (Could be tailored) |
|
Output Voltage |
220V (Could be customized) |
|
Working Frequency |
50HZ/60HZ |
|
Output Precision |
2% |
|
Insulation Class |
Class F |
|
Waveform Distortion |
No Additional Waveform Distortion |
|
Phase |
Single Phase |
|
Working Temperature |
－10℃ to＋45℃ |
|
Ambient Relative Humidity |
30%-80% |
|
Protection Class |
IP 23 (Higher protection class could be customized) |
|
Cooling Way |
Dry Type Air Colling |
|
Insulation Resistance |
≥5MΩ |
2. CUSTOMIZATION SERVICES
Single phase automatic voltage stabilizer could be customized according to your needs. Its rated capacity, input voltage range, output voltage, and protection functions all could be tailored based on your technical requirements. It features in high accuracy, fast response speed, wide input voltage range, and sound performance etc.
3. PRODUCT ADVANTAGES
Single phase voltage stabilizer features in:
Low loss,
high accuracy,
swift response speed,
high efficiency,
wide input voltage range,
and reliable performance.
4. PRODUCT APPLICATIONS
Single phase voltage stabilizer could be used with various home appliance and any electrical equipment with single phase voltage. When the input voltage fluctuates within a certain range, the single phase voltage stabilizer could help to regulate the voltage in a very short time, so as to keep the voltage stabilized.
5. FACTORY INTRODUCTION
Both a factory and a trading company,
based in Shanghai, PRC,
Having rich experience in manufacturing voltage stabilizer,
Having research and development team,
Having professional technical team,
Providing comprehensive pre-sale and after-sale services.
6. FACTORY QUALIFICATIONS
Ewen (Shanghai) Electrical Equipment Co., Ltd. is a manufacturer based in Shanghai, China.
We have obtained various certificates and qualifications, and also third-party test reports.
We pay much attention to the quality of our voltage stabilziers.
7. ABOUT LEAD TIME
Generally, we have spot goods for standard products. It could be delivered soon.
If the product needs to be customized according to your requirements, the lead time would be longer. Accurate lead time is based on order quantity and technical demands.
