Three Phase High Power Voltage Stabilizer Class F Insulation Strong Load Bearing Capability

  • Three Phase High Power Voltage Stabilizer Class F Insulation Strong Load Bearing Capability
  • Three Phase High Power Voltage Stabilizer Class F Insulation Strong Load Bearing Capability
  • Three Phase High Power Voltage Stabilizer Class F Insulation Strong Load Bearing Capability
Place of Origin Shanghai, China
Brand Name Ewen Power
Certification CE, ISO:9001
Model Number SBW-1200KVA
Minimum Order Quantity 1 pc
Price Negotiable
Packaging Details Standard Export Wooden Case
Delivery Time According to Quantity
Payment Terms T/T,
Supply Ability 200 pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name High Power Voltage Stabilizer Type AVR
Phase Three Phase Voltage 380VAC 3P
Display Digital Display Insulation Class F
Highlight

three phase voltage regulator

,

high power voltage regulator
Leave a Message
Product Description





Three Phase AVR High Power Voltage Stabilizer 1200KVA 380V with Digital Display





1. Product Parameters



Product name: three phase high power voltage regulator



Product type: SBW-1200KVA



Place of origin: Shanghai, China



Brand: Ewen Power or OEM brand



Rated capacity 1200KVA



Input voltage: 380VAC±20% (304-456V) or customized according to your requests



Output voltage: 380VAC±2% or tailored according to your requirements



Input current: 303A (maximum working current when the rated voltage is 380V)



Output current: 303A (maximum working current when the rated voltage is 380V)



Insulation class: class F



Working Noise: ＜80db (one meter)



Working frequency: 50Hz/60Hz ±2%



Working efficiency (power factor): 80%-90%



Ambient working temperature: -10℃-45℃



Ambient storage temperature: -20~60℃



Appropraite relative humidity: 20%-90%



Appropriate working altitude: ＜2000m



Protection class: IP20 (waterproof cabinet could be designed if necessary)



Cabinet type: matellic type



Cabinet color: RAL 7035 or customized according to your needs



Wiring terminals: bus bars





2. Product Features



① Large power: the rated capacity of this stabilizer is 1200KVA, which could bear loads of various equipment.



② Strong load bearing capability: the voltage stabilizer could bear 80%-90% loads of its rated capacity.



③ Fast response speed: when the voltage fluctuates within 20 volts, the 1200KVA AVR could react within one second.



④ High-precision output voltage: the output voltage of this voltage stabilizer is ±2% of the rated one, ensuring sound and stable performance of the load equipment.



⑤ LCD displaying system: the input and output data could be shown on the LCD displaying screen.

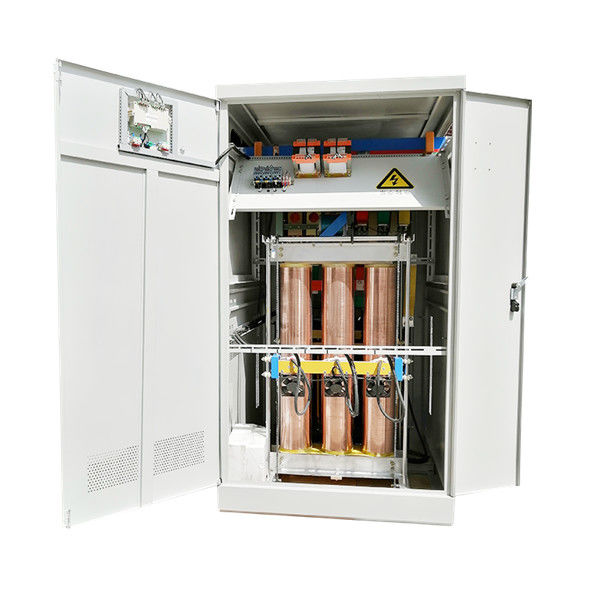

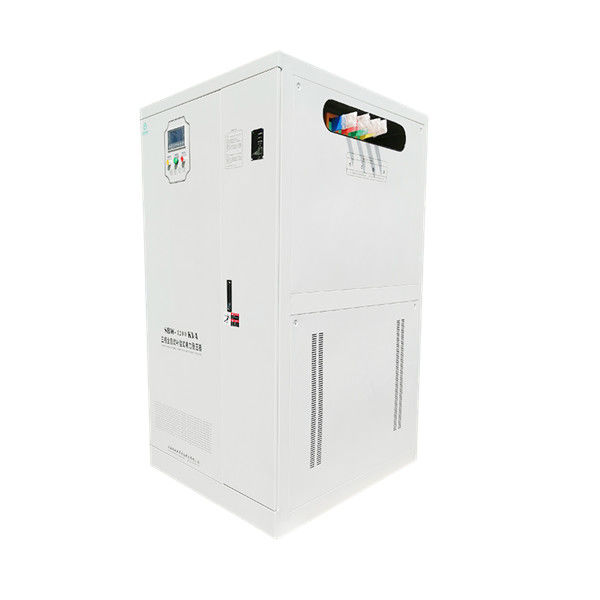

3. Product Display



Three Phase High Power Voltage Stabilizer Class F Insulation Strong Load Bearing Capability 0





4. Product Recommendation



Please have a look at the following chart to have a thorough knowledge of three phase high power AVR voltage stabilizer:



Model Rated Capacity Input Voltage Output Voltage
SBW-30KVA 30KVA 304-456VAC or customized according to your needs 380VAC±2% or customized based on your requirements
SBW-50KVA 50KVA
SBW-80KVA 80KVA
SBW-100KVA 100KVA
SBW-120KVA 120KVA
SBW-150KVA 150KVA
SBW-200KVA 200KVA
SBW-250KVA 250KVA
SBW-300KVA 300KVA
SBW-350KVA 350KVA
SBW-400KVA 400KVA
SBW-500KVA 500KVA
SBW-600KVA 600KVA
SBW-800KVA 800KVA
SBW-1000KVA 1000KVA
SBW-1200KVA 1200KVA
SBW-1500KVA 1500KVA
SBW-1800KVA 1800KVA
SBW-2000KVA 2000KVA
SBW-2500KVA 2500KVA
SBW-3000KVA 3000KVA



The rated capacity, input voltage range, output voltage, and other requirements all could be tailored.
