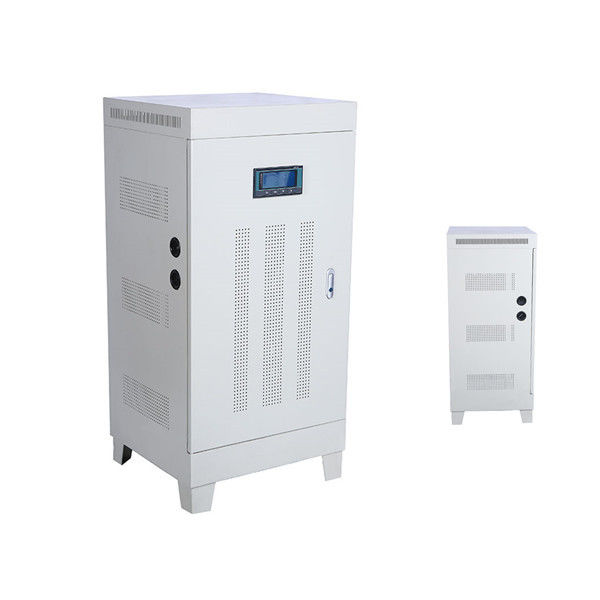

Customized Auto Voltage Regulator 90KW 50Hz With CE / ISO Certificates
1. Quick Profile
AVR, with its full name of automatic voltage stabilizer, generate a fixed output voltage that remains constant regardless of changes to its input voltage or load condition. This product introduced here is a 90KW AVR voltage stabilizer, of which the input voltage can be 304V to 456V while the output voltage could be 380V or 400V or be customzied according to your needs.
The major components of this AVR are three carbon brushes, three servo motors, three copper coils, three compensating coils, three circuit boards, and one enclosure. These major components are of good quality, which could helps to prolong the lifetime of themselves and that of the AVR voltage stabilizer.
2. Product Components and its features
| Component | Features | Functions |
| High quality carbon brushes | Durable than normal ones | facilitating a longer life of the carbon brush and stabilizer |
| Servo motors | Low noise and sound performance | Prolonging the lifetime of stabilizer |
| Copper coils | Good electrical conductivity | Regulating the voltage automatically |
| Compensating Coils | Quick response | Compensating the voltage automatically |
| Circuit Boards | Quick and precise response | Independently and precisely controls the three phase voltage |
| Enclosure | Iron-made, dust-proof and corrosion-resistant | Protecting the major components of the stabilizer |
3. Product Specifications
Please get more detailed specifications of this product through the following chart:
| Item name | Three phase AVR voltage Stabilizer |
| Item Type | TNS-90KW |
| Rated Power | 90KW |
| Working Frequency | 50-60Hz |
| Input Voltage |
304-456V |
| Output Voltage | 380V ±2% (373V to 387V) |
| Output Precision | Normally ±2% |
| Response Time | Normally less than 1 second |
| Power Factor | 0.95 |
| Weight | 230kg for reference |
| Relative Humidity | Less than 90% |
| Color | Silver enclosure or customized accroding to your needs |
| Warranty | 12 months |
For more information, please contact us through email or skype or what's APP etc.
4. Frequently Asked Questions
Q 1. What's the payment term?
A. We accept TT and . 30% deposit for normal products and 50% deposit for customized products and balance paid before shipping.
Q 2. How about the delivery time ?
A. It depends on the quantity and the product. If the quantity is small, it could be 5-7 days. If the quantity is large, it could be more days to produce the product. Also, if the product is a normal one, it could be faster than tailored one.
6. Product Details

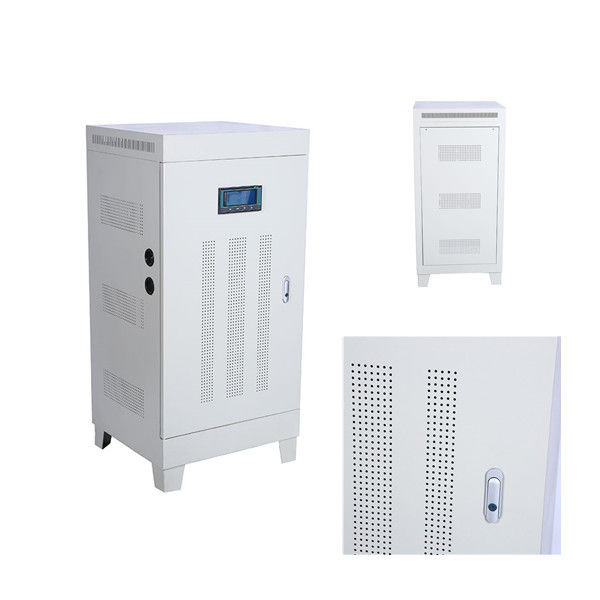

This picture shows the good ventilation of the product. When it was design at first, the ventilation of the stabilizer was considered. You could see a lot of ventilation holes in the iron enclosure, which was designed to dissipate the heat generated by the machine.
