Place of Origin:
Shanghai, China
Brand Name:
Ewen Power
Certification:
CE, ISO: 9001
Model Number:
TND(SVC)-5KVA
Home Equipment 5kva Single Phase Voltage Stabilizer AC 110V 220V 200V
1. Quick Details
| Item Name | Single-phase AVR Voltage Stabilizer |
| Item Model | TND(SVC)-5KVA |
| Place of origin | Shanghai, China |
| Brand | Ewen Power |
| Phase | Single Phase |
| Current Type | AC |
| Input Voltage | 150-260V (if the output is 220V) |
| Output Voltage | 220V/200V/110V (could be customized accroding to your needs) |
| Working Frequency | 50-60Hz |
| Rated Capacity | 5KVA |
| Working Efficiency | 95% |
| Certificates | CE, ISO:9001 |
| Protections | Over-voltage, under-voltage, over-load, over-current, short circuit |
| Insulation Class | F or H |
| Reaction Time | ＜1s (when the voltage fluctuates within 10% of 220V) |
| Display | LCD dispaly showing input voltage, output voltage, and current |
| Function | Stabilizing voltage to 220V or 110V automatically |
| Size | 230mm*320mm*270mm |
| Weight | 15kg (for reference) |
2. Major Components
| Number | Components | Function |
| No. 1 | Copper regulating coil | Regulating the voltage automatically |
| No. 2 | Carbon brush | Helping to regulate voltage through its rotation |
| No. 3 | Integrated circuits | Giving out signals to the stabilizer to regulate voltage when voltage fluctuates |
| No. 4 | Servo motor | Facilitating the rotation of carbon brush |
| No. 5 | LCD dispaly | Dispalying input voltage, output voltage, working current, and working condition |
| No. 6 | Enclosure | Protecting the whole parts of the stabilizer |
3. Dimension of Single-phase AVR Voltage Stabilizers
| Product Model | Size (Length*Width*Height) |
| TND(SVC)-0.5KVA | 190mm*160mm*135mm |
| TND(SVC)-1KVA | 220mm*200mm*160mm |
| TND(SVC)-1.5KVA | 220mm*200mm*160mm |
| TND(SVC)-2KVA | 240mm*270mm*200mm |
| TND(SVC)-3KVA | 230mm*295mm*250mm |
| TND(SVC)-5KVA | 230mm*320mm*270mm |
| TND(SVC)-7.5KVA | 250mm*420mm*360mm |
| TND(SVC)-10KVA | 280mm*340mm*550mm |
| TND(SVC)-15KVA | 340mm*385mm*655mm |
| TND(SVC)-20KVA | 380mm*430mm*480mm |
| TND(SVC)-30KVA | 380mm*430mm*480mm |
| TND(SVC)-40KVA | 430mm*490mm*900mm |
| TND(SVC)-50KVA | 430mm*490mm*1260mm |
4. Application
This AVR voltage stabilizer is an ideal AC automatic voltage stabilizer, which is widely used in office equipments, industrial equipments, household appliance, medical devices, testing instruments and communication equipments etc.
Firstly, it’s applicable for electrical equipments in families. For instance, it could be used for refrigerator, air conditioner, computers, and induction cooker etc. Secondly, it could be applied in malls and supermarkets, where needs stable voltage. Thirdly, it can be used in schools and hospitals, of which the voltage should be steady all the time. Forthly, industrial and mining enterprises, scientific research institutions, labs and so on.
As long as there is a need of stable voltage, it could be applied.
5. Related Products
Three phase voltage stabilizer
High power voltage stabilizer
Full automatic voltage stabilizer
Three phase transformer
Single phase transformer
Dry type transformer
Oil-immersed voltage stabilizer
6. Product Pictures

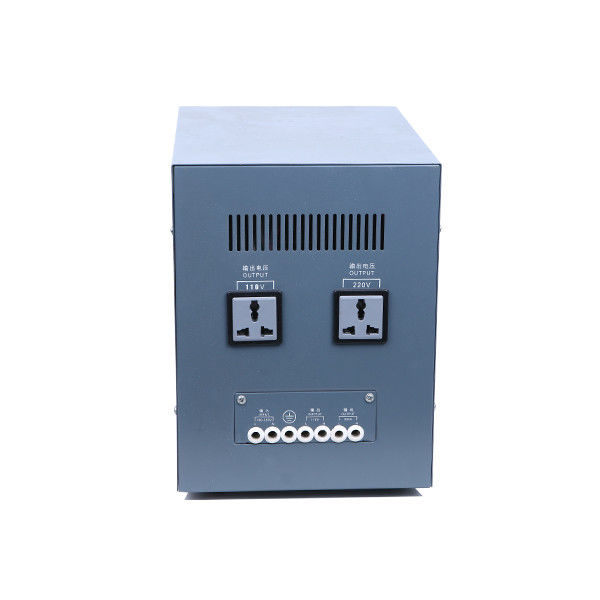

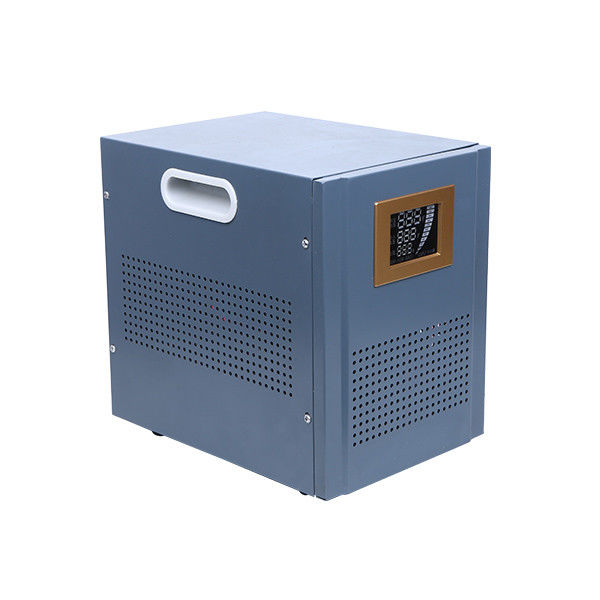

Please see the profile of TND-5KVA voltage stabilizer.
This is the LCD display of this stabilizer. You could see a lot of parameters on it.
Please see the handle of this product. Its design is user-friendly.
