AVR High Power Voltage Stabilizer 1200KVA 380V Voltage Regulator With Digital Display

AVR High Power Voltage Stabilizer 1200KVA 380V Voltage Regulator With Digital Display

three phase voltage regulator

high power voltage regulator

Place of Origin:

Shanghai, China

Brand Name:

Ewen Power

Certification:

CE, ISO:9001

Model Number:

SBW-1200KVA

Contact Us
Request A Quote
Product Details
Name:
High Power Voltage Stabilizer
Type:
AVR
Phase:
Three Phase
Voltage:
380VAC 3P
Display:
Digital Display
Insulation:
Class F
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
Standard Export Wooden Case
Delivery Time
According to Quantity
Payment Terms
T/T,
Supply Ability
200 pcs per Month
Product Description





1200KVA AVR High Power Voltage Stabilizer 380V Voltage Regulator with Digital Display





1. Product Parameters





Product name Three phase high power voltage regulator
Product type SBW-1200KVA
Brand Ewen Power or OEM brand
Place of origin Shanghai, China
Rated power 1200KVA
Input voltage 380VAC±20% or customized based on your requests
Output voltage 380VAC±2% or tailored according to your demands
Input current 303A
Output current 303A
Insulation class Class F or higher class could be tailored
Working frequency 50Hz/60Hz ±2%
Working Noise <80db (one meter)
Regulation way Automatic and Simultaneous regulation for three phase
Working efficiency (power factor) 80%-90%
Ambient working temperature -10℃-45℃
Appropraite relative humidity 20%-90%
Ambient storage temperature -20~60℃
Appropriate working altitude <2000 meters
Protection class IP20 (waterproof cabinet could be designed if necessary)
Cabinet type Matellic type
Cabinet color RAL 7035 or customized according to your needs
Wiring terminals

Bus bars

Protections Over-voltage, under-voltage, over-load, over-current, short circuit, time delay, phase loss etc.
Display LCD digital display
Size 1350*1440*2150mm







2. Product Features



Features Description
Strong load bearing capability Large rated capacity facilitates strong load bearing capability
Large power 1200KVA large capacity
Fast response speed One second reaction time to voltage change
High-precision output voltage ±2%
LCD displaying system Input and output voltage could be shown on the LCD displaying screen

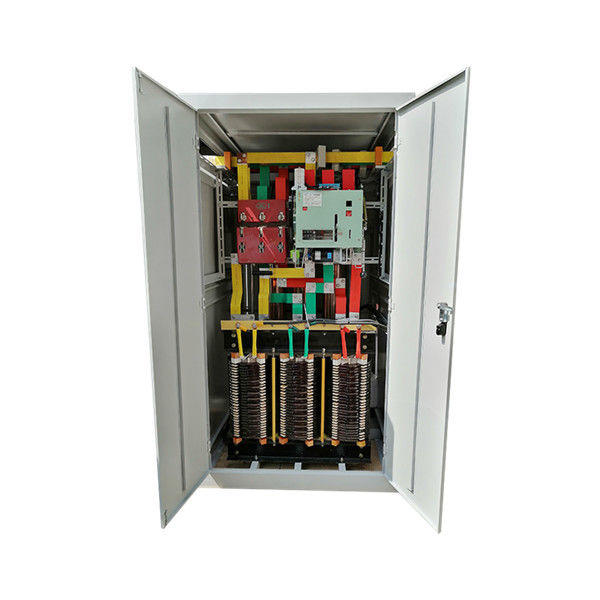

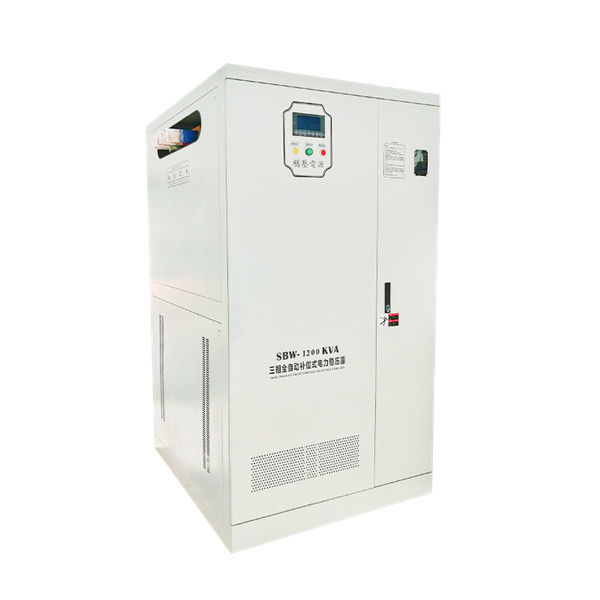

3. Product Details Display



AVR High Power Voltage Stabilizer 1200KVA 380V Voltage Regulator With Digital Display 0





4. Product Recommendation



There are different types of three phase high power voltage regulator. Please get more information of models with different capacity from the parameters listed in the chart.



Model Rated Capacity Input Voltage Output Voltage
SBW-30KVA 30KVA

380V/400V/

415V/420V/440V

±20% or Customized

380V/400V/

415V/420V/440V

or customized according to your requirements
SBW-50KVA 50KVA
SBW-80KVA 80KVA
SBW-100KVA 100KVA
SBW-120KVA 120KVA
SBW-150KVA 150KVA
SBW-200KVA 200KVA
SBW-250KVA 250KVA
SBW-300KVA 300KVA
SBW-350KVA 350KVA
SBW-400KVA 400KVA
SBW-500KVA 500KVA
SBW-600KVA 600KVA
SBW-800KVA 800KVA
SBW-1000KVA 1000KVA
SBW-1200KVA 1200KVA
SBW-1500KVA 1500KVA
SBW-1800KVA 1800KVA
SBW-2000KVA 2000KVA
SBW-2500KVA 2500KVA
SBW-3000KVA 3000KVA
